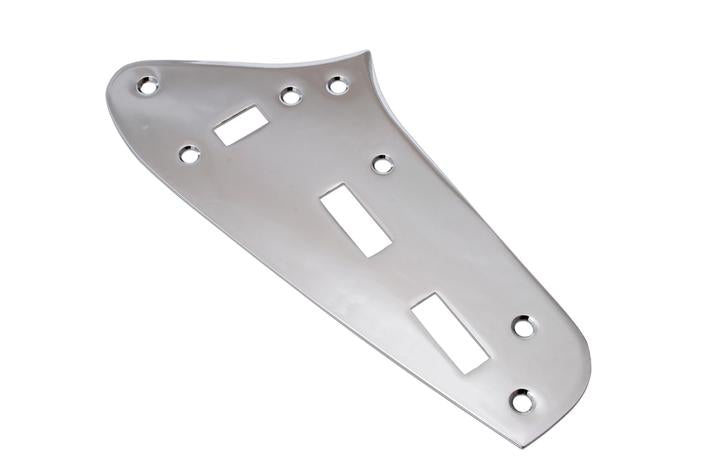

Upper Switch Plate for Jaguar

  • Switch control plate for Fender Jaguar
  • Installed above pickguard near the upper horn
  • Overall Length: 135mm
  • Width at widest point: 60mm
  • Thickness: 1.5mm
  • Distances between each plate mounting screwhole (centre to centre, clockwise from uppermost):  1-2: 46mm
                          2-3: 24mm
                          3-4: 50mm
                          4-5: 16mm
                          5-1: 116mm
  • Distance between switch mounting screwholes (c to c): 28mm
  • Small switch hole dimensions: 10.7mm x 6mm
  • Large switch hole dimensions: 18.6mm x 6.7mm
