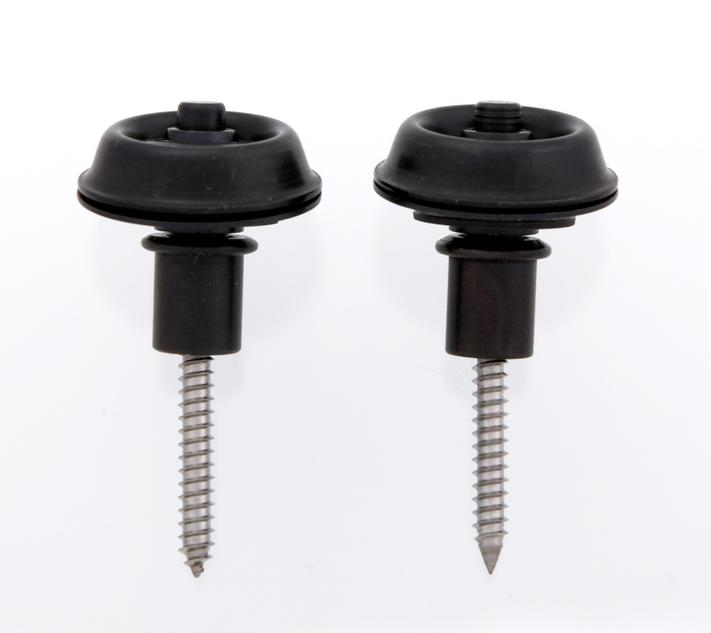

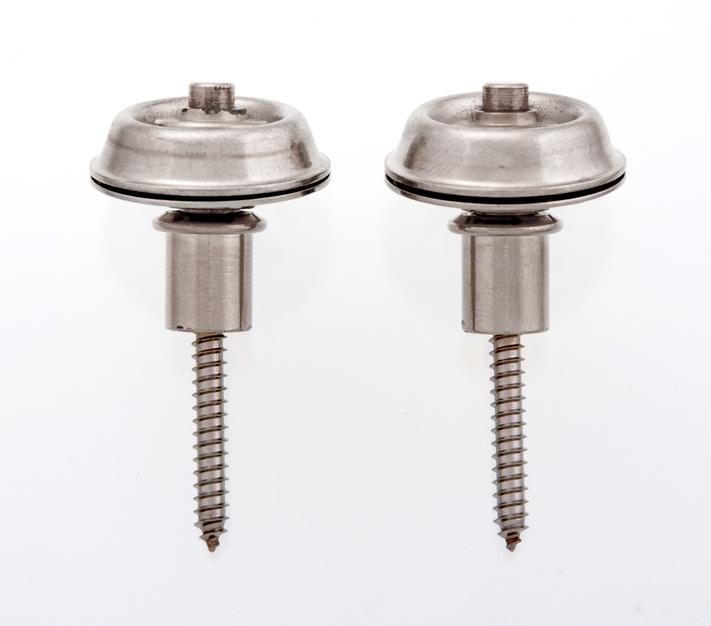

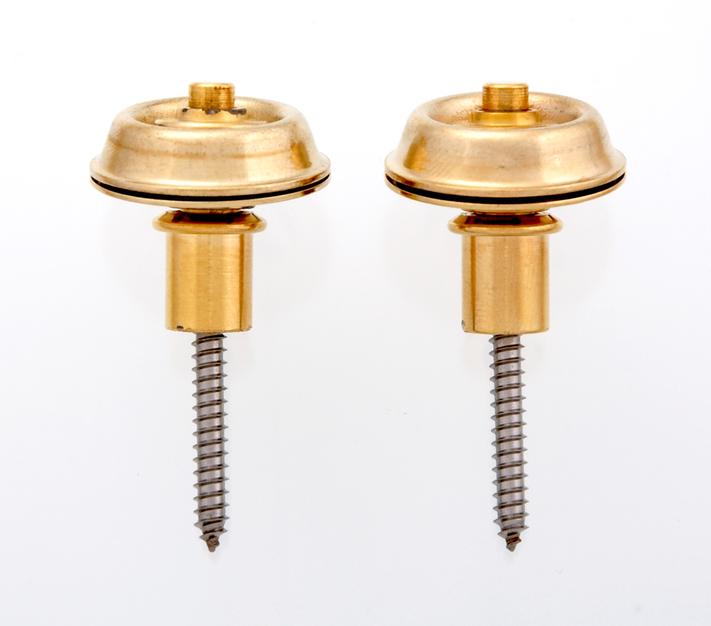

Dunlop Flush Mount Strap Lock Set, Pack of 2

Dunlop Flush Mount Strap Lock Set

• Pack of 2
• Top Locking mechanism clips into bushing that is recessed into guitar body
• Push button to release strap
• Strap goes in between the bell cover and the large washer around the release mechanism
• E type sirclip (included) attaches underneath large washer
• Release mechanism then clicks into place in the body mounted bushing
• Mounting Screws included
• Outside diameter of Bell section/Large Washer: 25mm
• Outside diameter of Body bushing: 9.2mm
• Diameter of lip on bushing: 12mm
• Height of bushing under lip: 10mm
