Paddlehead Guitar Neck With Square Heel

Paddlehead Guitar Neck With Square Heel



Sale Sold out
Neck Profile

Paddlehead Guitar Neck With Square Heel

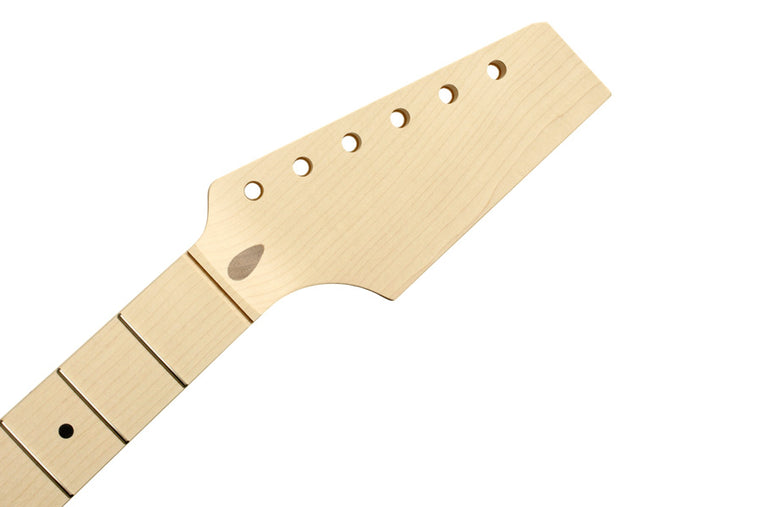

Based on Allparts most popular neck, the PHM-T1C neck offers all the same benefits as our TMO-C Telecaster® replacement neck in "paddle-head" version.  Cut for a "squared" neck pocket, the PHM-T1C offers a comfortable C-shape profile, 21 vintage tall frets, and 10" fretboard radius neck that will drop into most squared/flat Telecaster® neck pockets.  Predrilled for vintage 6 in-line tuners, the PHM-T1C takes out the guess work of where to install your keys! A great neck for those looking to customize their guitar with a personalized look!


  • Scale Length: 25.5"
  • Neck Profile Shape: C
  • Frets: 21 Tall frets, 0.079" x 0.055" (2mm x 1.4mm)
  • Wood: 1-piece maple
  • Finish: None/Unfinished
  • Fretboard Radius:  10"
  • Inlays: Black fretboard and side marker dots
  • Nut Width: 1-5/8" (41.2mm)
  • Heel Width: 2-3/16" (55.5mm)
  • Heel Profile: squared
  • Tuning Peg Holes: Vintage 2-step hole
    • 0.34" (8.5mm) bushing-hole diameter
    • 0.25" (6.5mm) post-hole diameter
  • Truss Rod Adjustment Location: Heel
  • Neck Thickness:
    • 0.85" (21.6mm) at first fret
    • 0.95" (24.1mm) at twelfth fret

Important Notes

  • Wood grain varies from neck to neck.  Your neck may differ slightly from what is pictured.
  • All necks have a limited lifetime warranty against defects in materials and workmanship.
  • All necks may require fret leveling and polish.  This is normal and not a defect.
  • To protect against the effects of moisture, we recommend sealing unfinished necks prior to installation.
