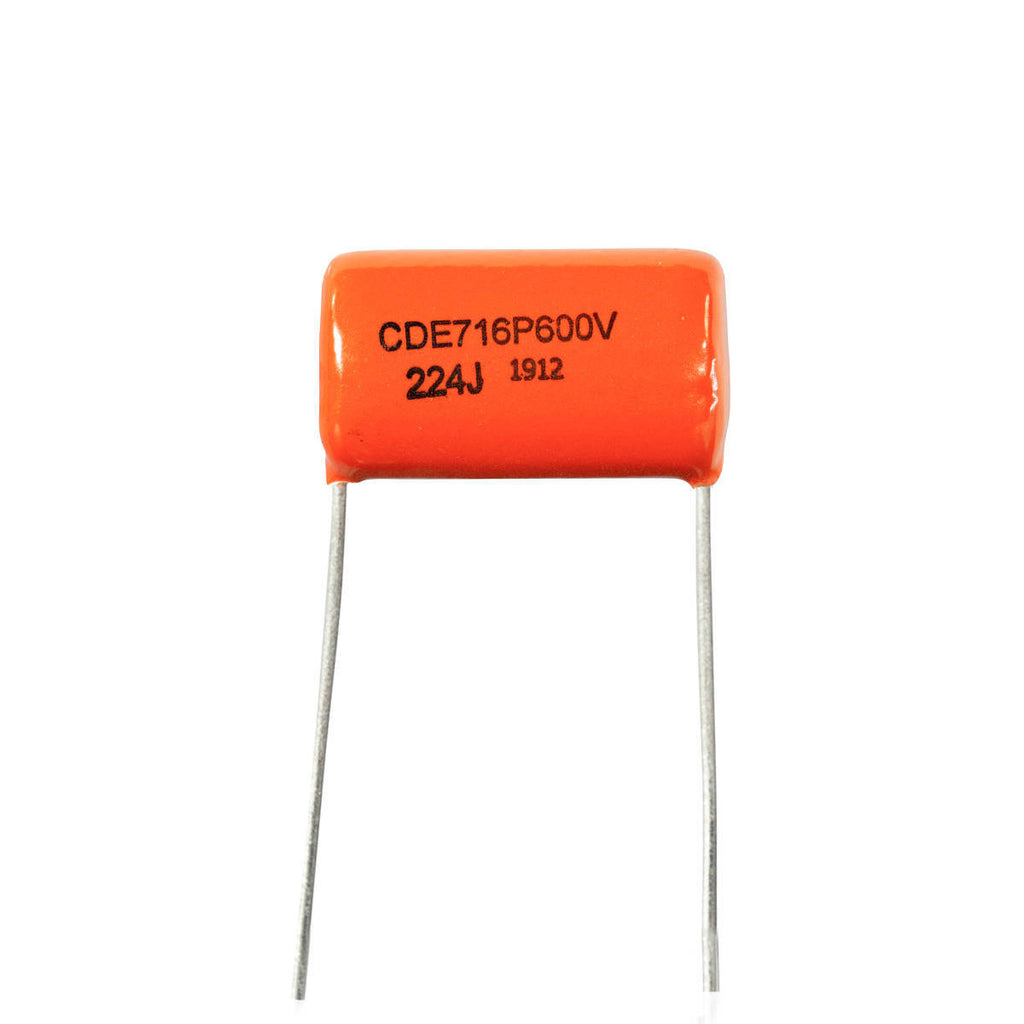

Orange Drop 0.22uF 600V 715P Series Capacitor

The 715P and 716P series are manufactured with polypropylene film and extended foil. Polypropylene has a very low dissipation factor, low dielectric absorption and exhibits excellent capacitance stability. These characteristics combined with the direct connection of the lead wire to the extended foil electrode makes the 715P and 716P series ideal for high current, high pulse applications.

.22 microfarad / 220 nanofarad - 600 volt

  • Type: Film/Foil
  • Capacitance: .22uF/220nF
  • Rated Voltage: 600VDC
  • Tolerance: +/-5%
  • Operating Temp.: -55°C to +85°C (+105°C with proper voltage derating)
  • Dimensions: 21.1mm dia. x 41.9mm length
  • Lead Spacing: 27.8mm
