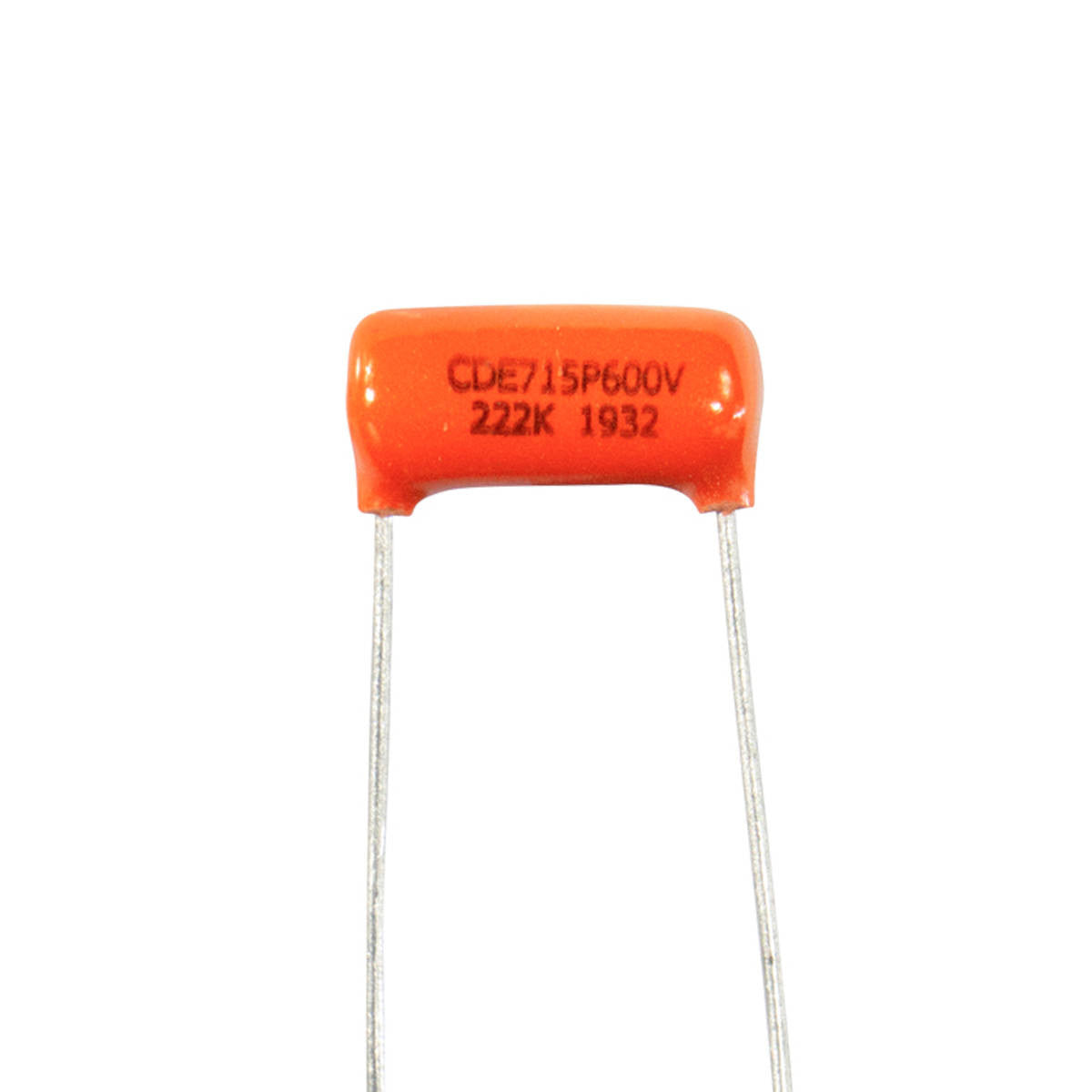

Orange Drop 0.0022uF @ 600V, 715P Series Capacitor

The 715P and 716P series are manufactured with polypropylene film and extended foil. Polypropylene has a very low dissipation factor, low dielectric absorption and exhibits excellent capacitance stability. These characteristics combined with the direct connection of the lead wire to the extended foil electrode makes the 715P and 716P series ideal for high current, high pulse applications.

.0022 microfarad / 2.2 nanofarad - 600 volt

  • Type: Film/Foil
  • Capacitance: .0022uF/2.2nF
  • Rated Voltage: 600VDC
  • Tolerance: +/-10%
  • Operating Temp.: -55°C to +85°C (+105°C with proper voltage derating)
  • Dimensions: 8.4mm dia. x 17.8mm length
  • Lead Spacing:12.7mm
